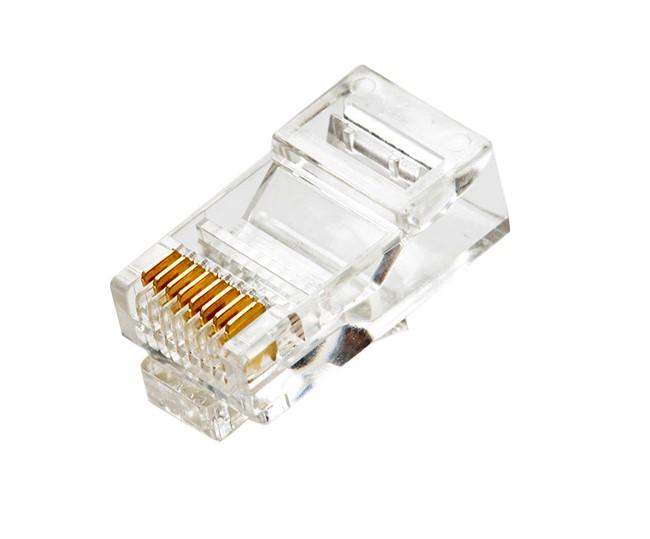

CAT5E UTP EZ RJ45 CONNECTOR
CAT5E UTP EZ RJ45 CONNECTOR
CAT5E UTP EZ RJ45 CONNECTOR
CAT5E UTP EZ RJ45 CONNECTOR

CAT5E UTP EZ RJ45 CONNECTOR

Available: In Stock
Wishlist Compare
$19.99

 Features
 ◆RJ45 Connector is the important interfaces equipment in the network connection.
 ◆FU, 1U, 3U, 15U, 30U, 50U staggered gold-plated connectors.
 ◆Material is the high density polyethylene.
 ◆RJ45 connector mainlu used to connect network ports, switches, telephones etc.
 ◆RJ45 standerd, 8P8C, connect network cables.

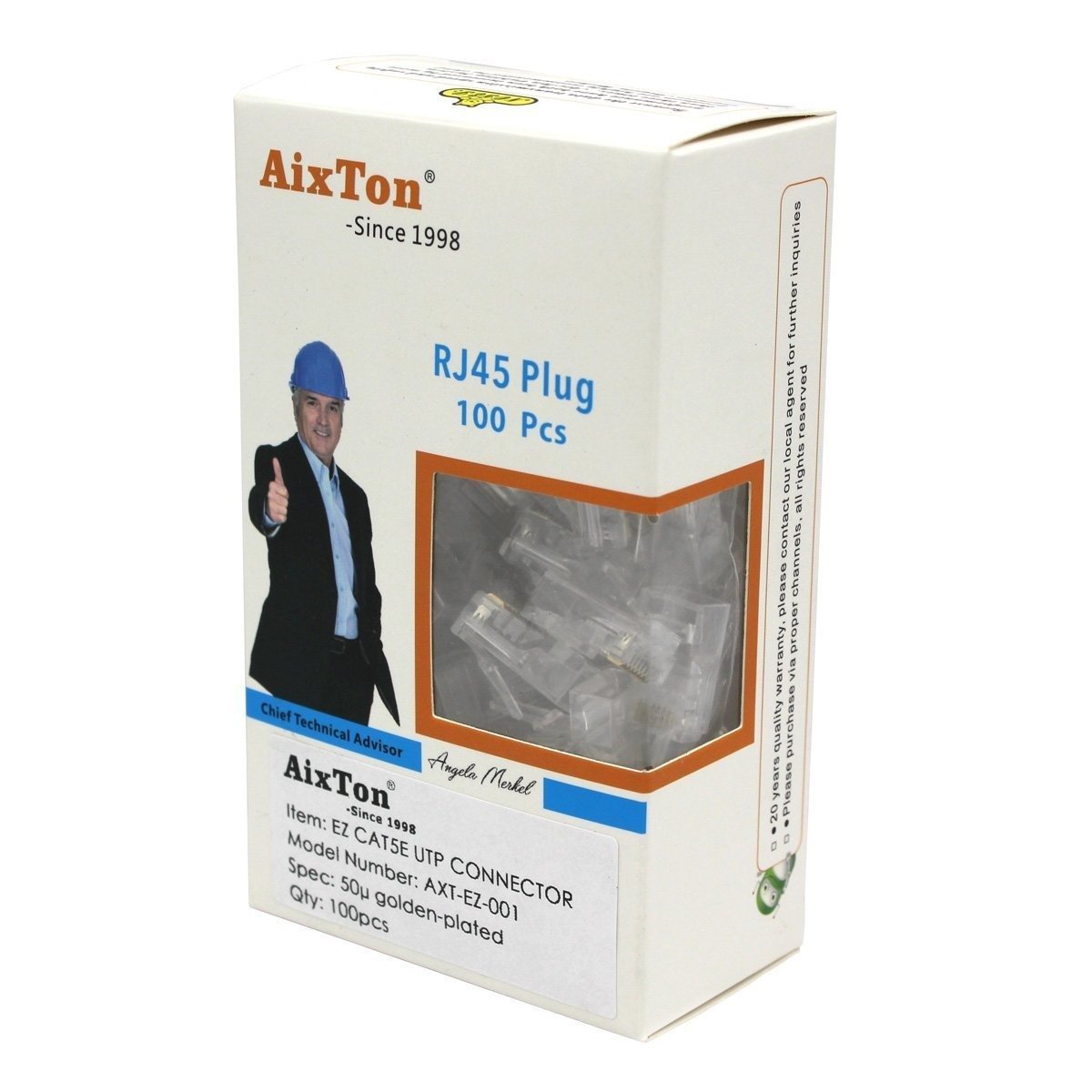

Packing
 ◆100 Pieces/ Polybag



 Features
 ◆RJ45 Connector is the important interfaces equipment in the network connection.
 ◆FU, 1U, 3U, 15U, 30U, 50U staggered gold-plated connectors.
 ◆Material is the high density polyethylene.
 ◆RJ45 connector mainlu used to connect network ports, switches, telephones etc.
 ◆RJ45 standerd, 8P8C, connect network cables.

Packing
 ◆100 Pieces/ Polybag




Electrical Current Rating 1.5AMPS at 25℃
Voltage Rating 125V/ AC
Insulation Resistance 100MΩ/ Min at 500V DC EIA-361-21C
Withstand Voltage 100V AC RMS OR 1500V DC at 0.5MA 50HZ/ 60HZ/ Min EIA-361-20B
Connect Resistance 40MΩ MAX. EIA-364-23B
Mechanical Retension Strength 57.83N/ Min EIA-364-98
Durability 1000 Mating Cycles/ Min
Environmental Yes
Operation Temperature -20℃ to 70℃
Storage -10℃ to 40℃ Relative Humidity <80%
Material Shell/ Housing Eco-friendly Plastic
Flammablity Class UL94V-0/ V-2
Terminal Thickness 0.3mm Phosphor Bronze Selectrive Gold-plated Over Nickel
Gold-plated Fu, 1u, 3u, 5u, 15u, 30u and 50u.
