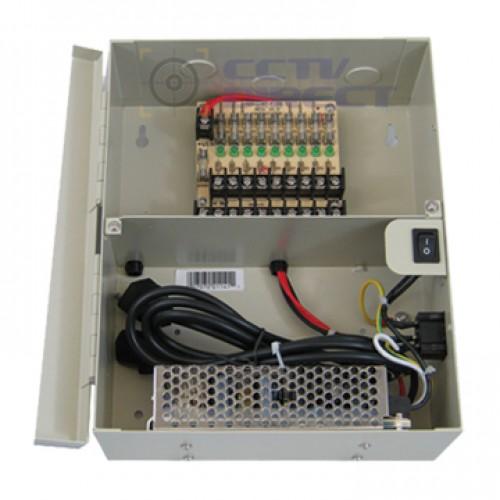

9 Channel Power Supply Box 12VDC Output
- Order within
• 12VDC Output
• 9 Amp @ 12VDC supply current
• 9 resettable PTC fuse
• Output Fused are rated @ 1.6Amp
• 110~220VAC 60Hz input
• AC Power Switch, Power LED indicator
• Power core Included
• 1-year Warranty
Thermal Cutoffs Protection (TCO):
Each output has independent PTC fuse and LED indicator, when problem occurs, only affect the independent output, other outputs still working.
Short circuit protection:
When short condition occurs, independent PTC fuse will open the circuit, when condition removed, PTC fuse will automatically back to close.
High voltage protection:
When high voltage occurs, the surge protection will be hit through to protect the connected device. Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status. When condition removed, the it will switch back to normal.
| Model | CD1209-D9 |
|---|---|
| Input Voltage Frequency | 50/60Hz |
| Output Voltage | DC 12V +/-5% |
| Total Output Current | 9 Amps |
| Output Channels | 9 |
| Fuse Type | PTC (Resettable ) Never need to replace. |
| Fuse Rating | 1.6 Amps |
| Application | CCTV Camera, IP Camera, PTZ, IR Illuminator, DVR, LED Driver， Access Control , etc. |
| Wall Mountable | Yes |
| Dimension (mm) | 250 x 210 x 90 （ mm ） |
| Weight | 2.2 KG |
| Safety | CE / FCC / RoHS; UL Listed |
• 12VDC Output
• 9 Amp @ 12VDC supply current
• 9 resettable PTC fuse
• Output Fused are rated @ 1.6Amp
• 110~220VAC 60Hz input
• AC Power Switch, Power LED indicator
• Power core Included
• 1-year Warranty
Thermal Cutoffs Protection (TCO):
Each output has independent PTC fuse and LED indicator, when problem occurs, only affect the independent output, other outputs still working.
Short circuit protection:
When short condition occurs, independent PTC fuse will open the circuit, when condition removed, PTC fuse will automatically back to close.
High voltage protection:
When high voltage occurs, the surge protection will be hit through to protect the connected device. Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status. When condition removed, the it will switch back to normal.
| Model | CD1209-D9 |
|---|---|
| Input Voltage Frequency | 50/60Hz |
| Output Voltage | DC 12V +/-5% |
| Total Output Current | 9 Amps |
| Output Channels | 9 |
| Fuse Type | PTC (Resettable ) Never need to replace. |
| Fuse Rating | 1.6 Amps |
| Application | CCTV Camera, IP Camera, PTZ, IR Illuminator, DVR, LED Driver， Access Control , etc. |
| Wall Mountable | Yes |
| Dimension (mm) | 250 x 210 x 90 （ mm ） |
| Weight | 2.2 KG |
| Safety | CE / FCC / RoHS; UL Listed |
